Switched Reluctance Motor

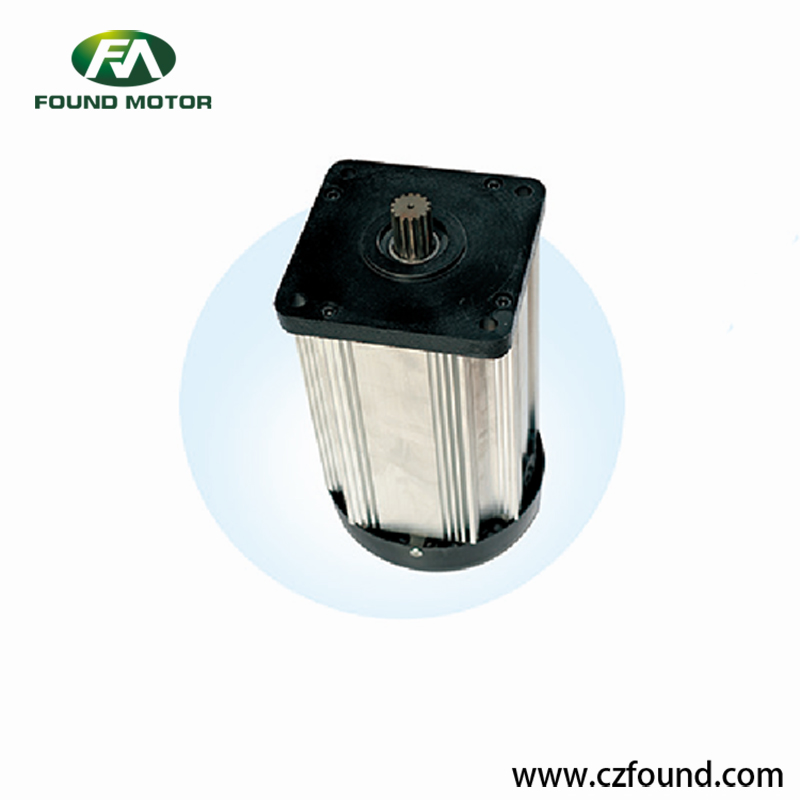

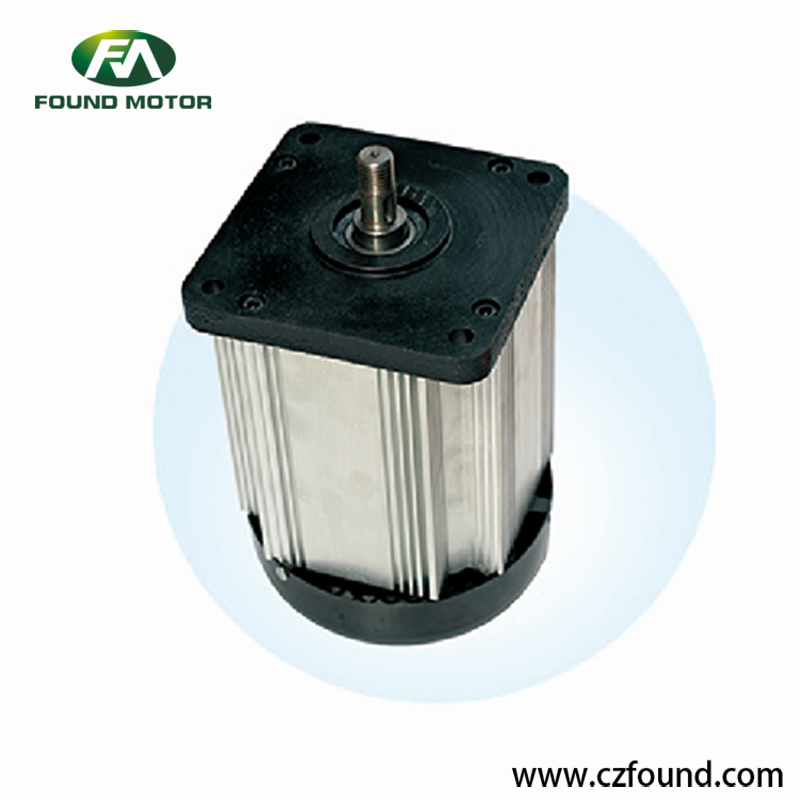

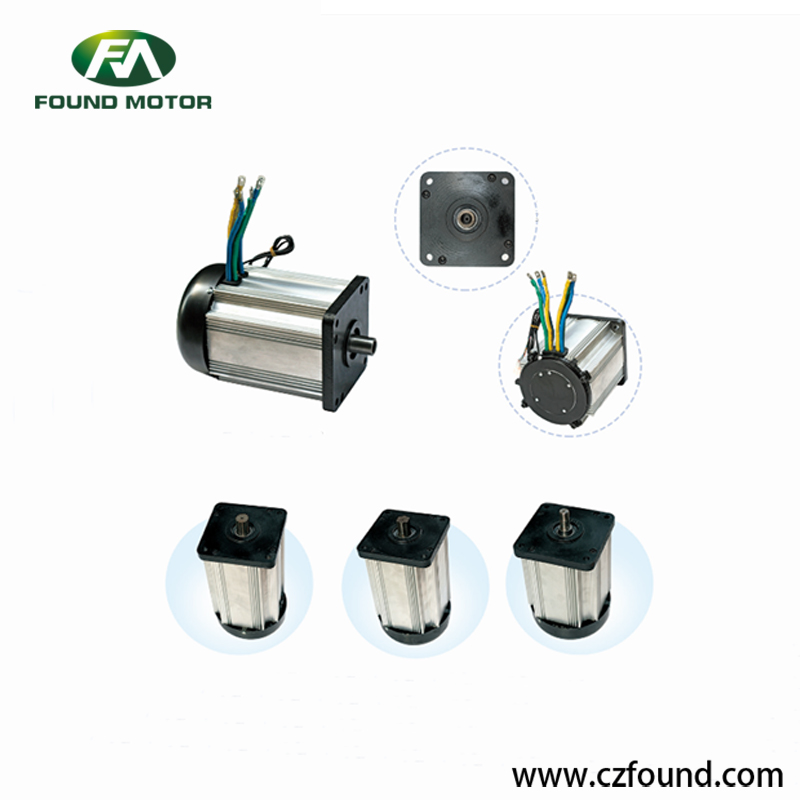

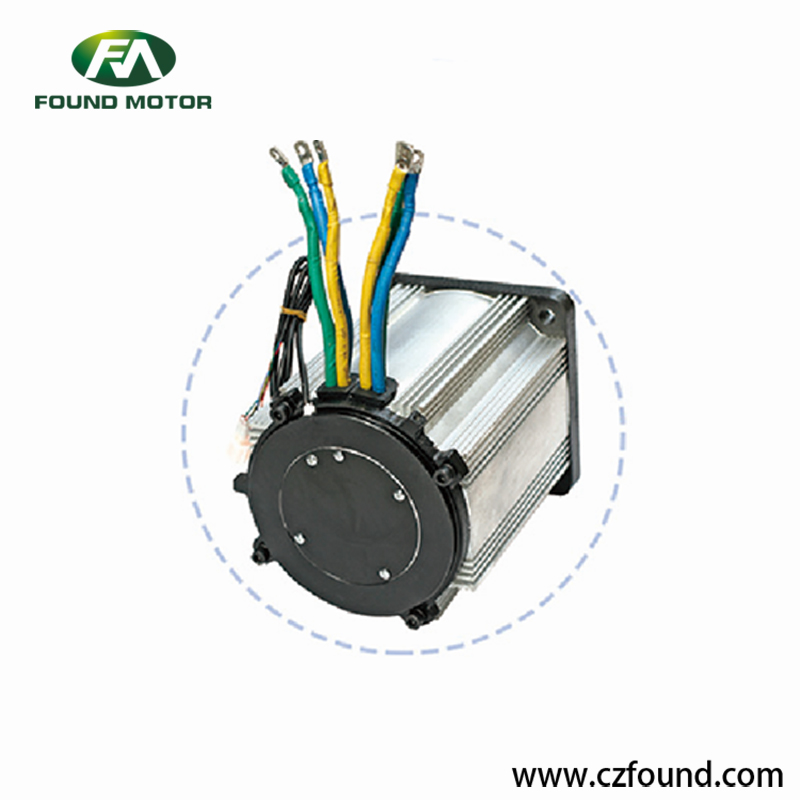

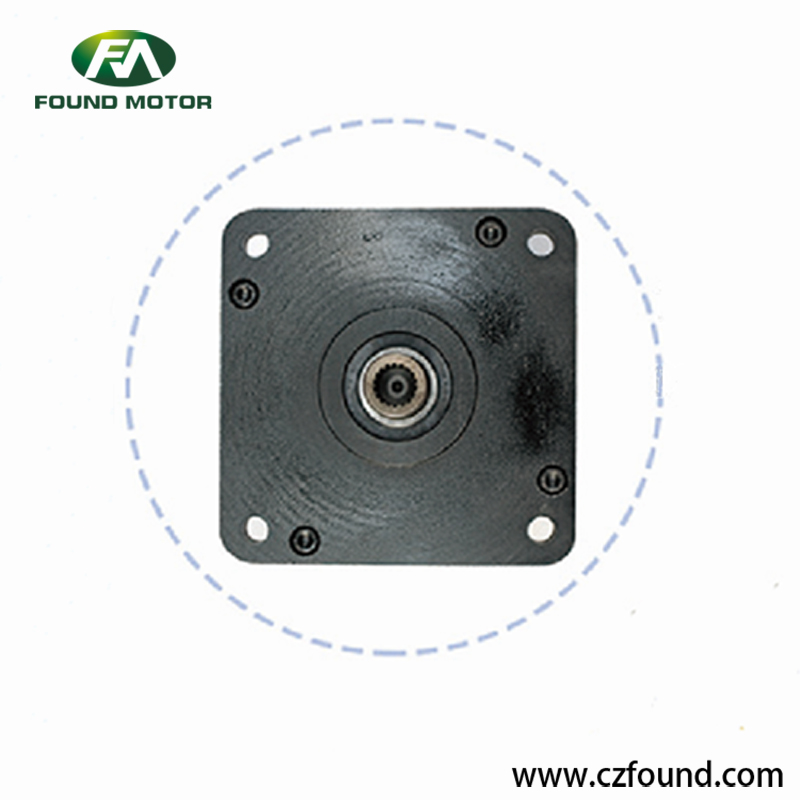

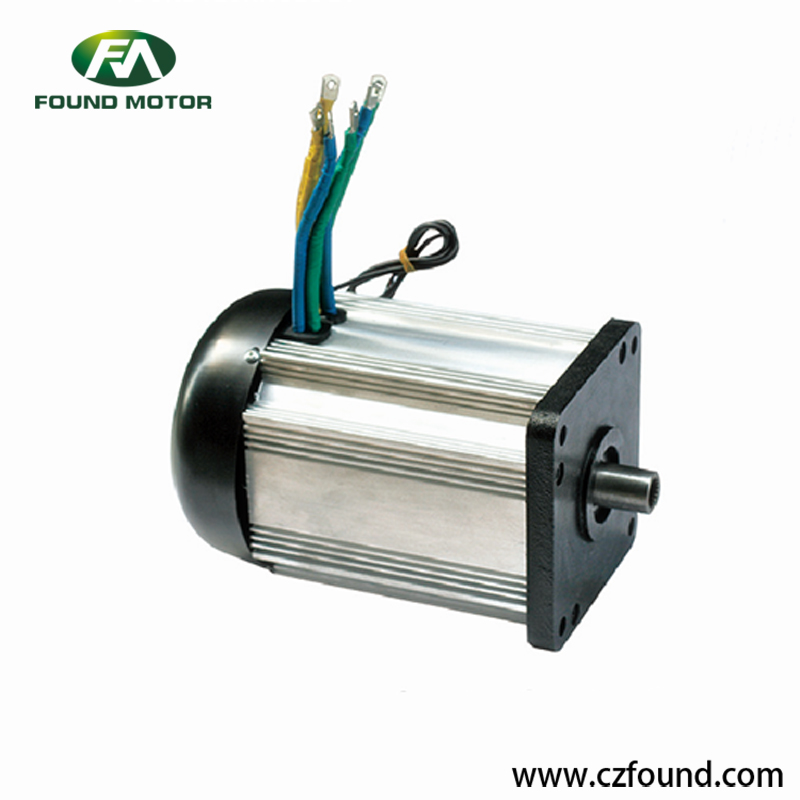

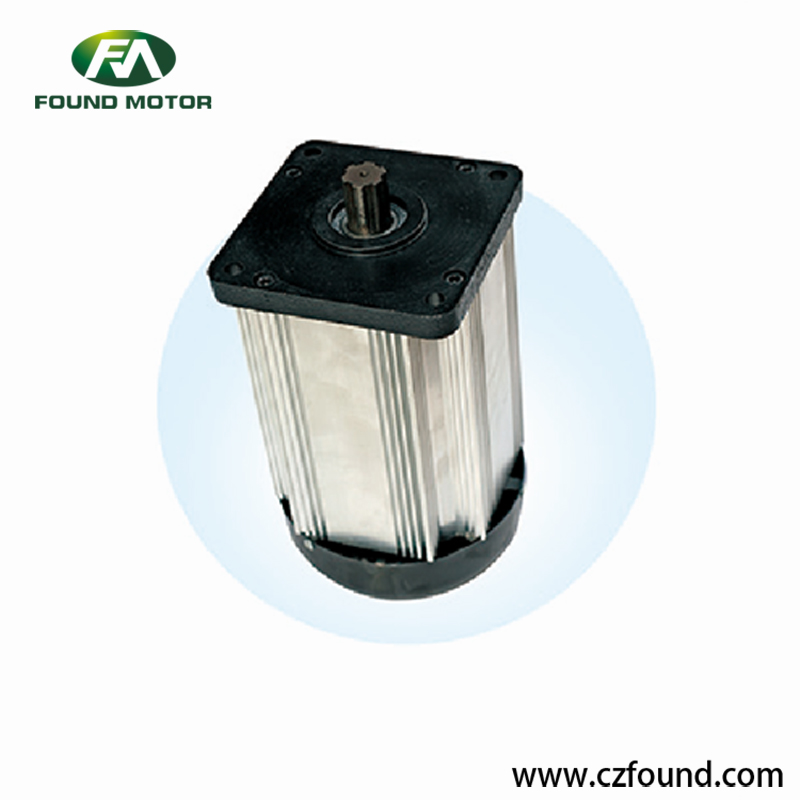

48V/ 4000W Switched reluctance motor for electric tricycles and three wheel rickshaw
- FOUND MOTOR
- FM-SRM-06
- CCC,CE,ROHS,FCC
- CHANGZHOU,CHINA
- Description: 48V/ 4000W Switched reluctance motor for electric tricycles and three wheel rickshaw
(4KW-7.5KW,match with TBK controller)
| Rated output power | 4KW | 5KW | 6KW | 7.5KW | |
| Rated voltage | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V | |
| Rated speed | 3400/4600RPM | 2900/3900RPM | 2500/3300RPM | 2200/2800RPM | |
| Rated current | 78A/65A | 98A/81A | 117A/98A | 147A/122A | |
| Rated torque | 11.2/8.3N.M | 16.5/12.3N.M | 23.0/17.4N.M | 30.5/24.0N.M | |
| No-load current | 22A/23A | 23A/24A | 24A/25A | 24A/25A | |
| No-load speed | 9600RPM | 9600RPM | 9600RPM | 9600RPM | |
| Efficiency | 85% | 85% | 85% | 85% | |
| Reduction ratio |
12.5:1 10.5:1 |
12.5:1 10.5:1 |
12.5:1 10.5:1 |
12.5:1 10.5:1 |
|
| Recommended total load | 1.5 tons | 1.8 tons | 2.0 tons | 2.2 tons | |
| Application range |
can be used for electric tricycles(three wheel rickshaw), mini electric four wheel vehicles, electric micro trucks, Campus electric car,electric car,electric bus and other electric vehicles. |
||||
| Other requirements | Voltage48v,60v,72V can be used | Fast speed, big torque, plains, hills, mountains can be used | |||
Parameters of dedicated(special)switched reluctance motor for cargo use
(4KW-7.5KW,match with TBK controller)
| Rated output power | 4KW | 5KW | 6KW | 7.5KW | |
| Rated voltage | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V | |
| Rated speed | 2800/3900RPM | 2400/3300RPM | 2100/2800RPM | 1900/2400RPM | |
| Rated current | 78A/65A | 98A/81A | 117A/98A | 147A/122A | |
| Rated torque | 13.7/9.8N.M | 19.9/14.5N.M | 27.4/20.5N.M | 35.3/27.9N.M | |
| No-load current | 20A/21A | 21A/22A | 22A/23A | 22A/23A | |
| No-load speed | 8000RPM | 8000RPM | 8000RPM | 8000RPM | |
| Efficiency | 85% | 85% | 85% | 85% | |
| Reduction ratio |
12.5:1 15.5:1 |
12.5:1 15.5:1 |
12.5:1 15.5:1 |
12.5:1 15.5:1 |
|
|
Recommended total load |
2.0 tons | 2.2 tons | 2.5tons | 2.8tons | |
| Application range |
can be used for heavy duty electric tricycle, electric mini truck, electric forklift, electric trolley, electric sightseeing coach, electric tractor and other electric vehicles. |
||||
| Other requirements |
Voltage48v,60v,72V can be used |
Medium speed, big torque, plains, hills, mountains can be used | |||
