Switched Reluctance Motor

  • 72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw
  • 72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw
  • 72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw
  • 72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw
72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw

72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw

  • FOUND MOTOR
  • FM-SRM-05
  • CCC,CE,ROHS,FCC
  • CHANGZHOU,CHINA

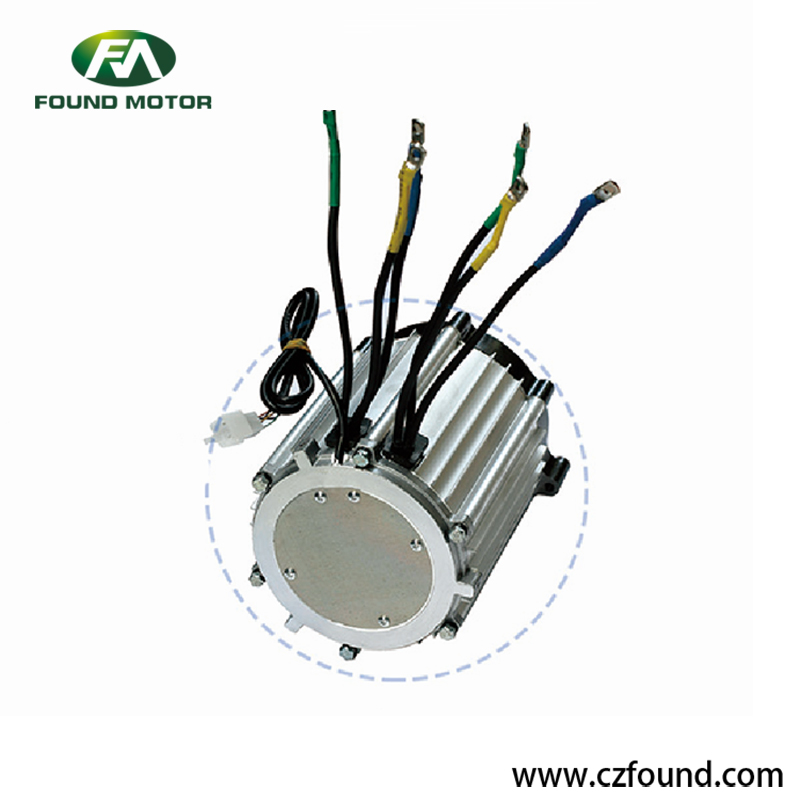

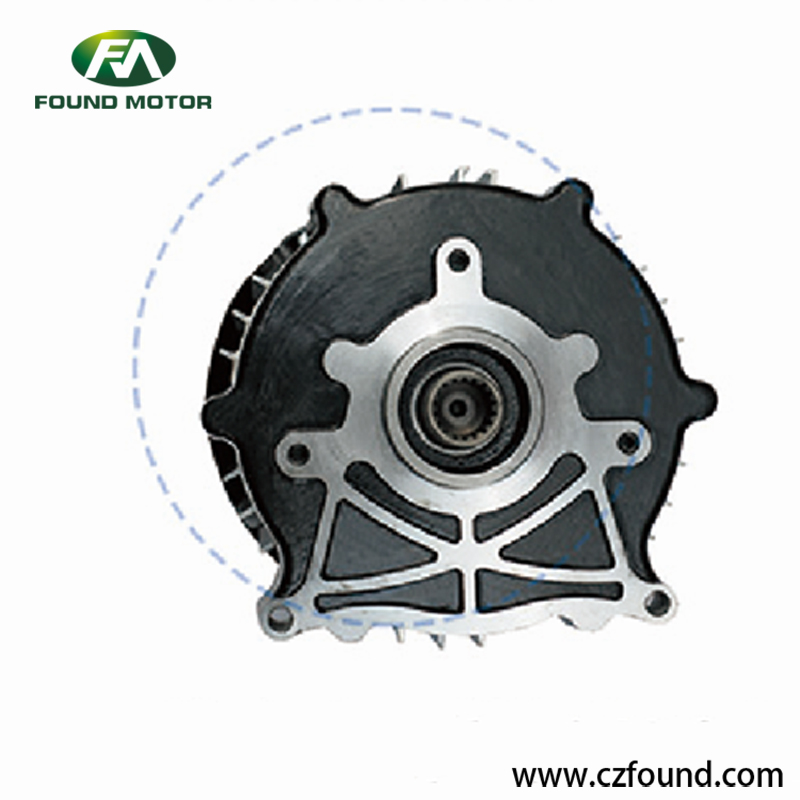

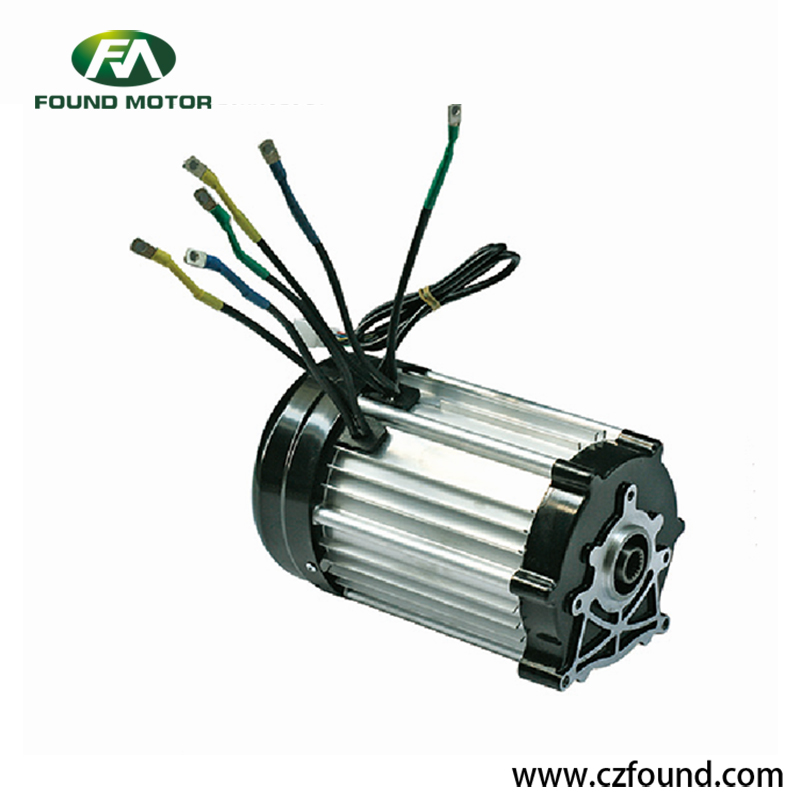

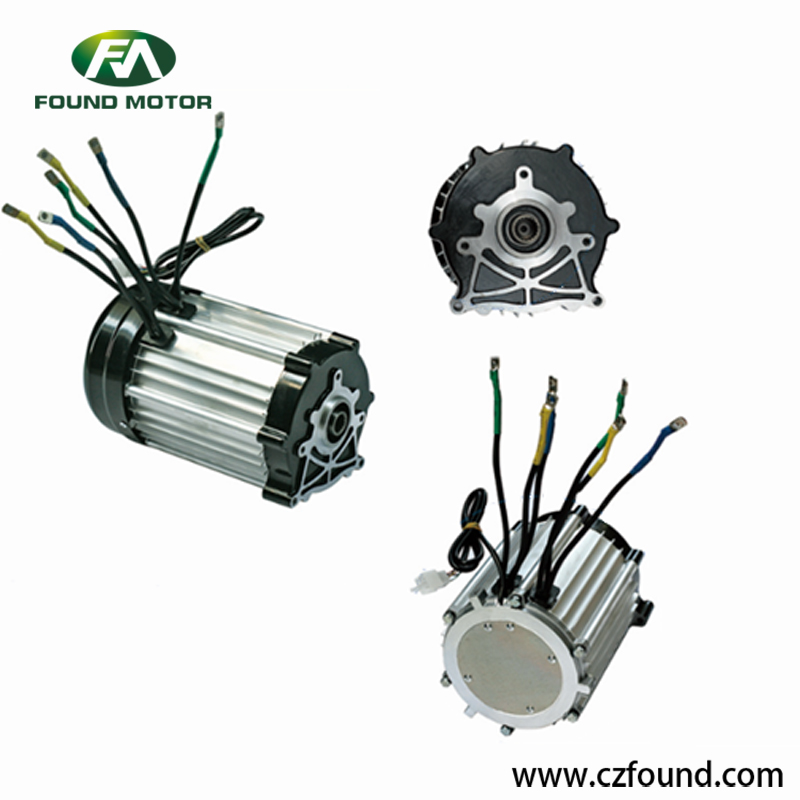

  • Description: 72V/ 2000W Switched reluctance motor for electric tricycles and three wheel rickshaw
  • Inquiry



(1200W-3000W,match with TBK controller)

Rated output power 1200W 1500W 1800W 2000W 2500W 3000W
Rated voltage 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V
Rated speed 5600/7300RPM 5100/6900RPM 4100/5600RPM 3900/5100RPM 3700/4900RPM 3500/4600RPM
Rated current 27A/22A 33A/27A 38A/32A 46A/39A 53A/44A 63A/53A
Rated torque 2.0/1.6N.M 2.8/2.1N.M 4.2/3.0N.M 5.4/4.1N.M 6.5/4.9N.M 8.2/6.2N.M
No-load current 14A/15A 15A/16A 16A/17A 17A/18A 18A/19A 19A/20A
No-load speed 10000RPM 10000RPM 9500RPM 9500RPM 9500RPM 9500RPM
Efficiency 83% 83% 83% 83% 83% 83%
Reduction ratio

12.5:1

10.5:1

12.5:1

10.5:1

12.5:1

10.5:1

12.5:1

10.5:1

12.5:1

10.5:1

12.5:1

10.5:1

Recommended

total load

700Kg 800Kg 900Kg 1100Kg 1300Kg 1500Kg
Application range can be used for electric tricycles(three wheel rickshaw), mini electric four wheel vehicles,
Other requirements Voltage48v,60v,72V can be used Fast speed, big torque, plains, hills, mountains can be used

Parameters of dedicated(special)switched reluctance motor for cargo use

(1200W-3000W,match with TBK controller)

Rated output power 1200W 1500W 1800W 2000W 2500W 3000W
Rated voltage 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V 48V/60V/72V
Rated speed 5300/6900RPM 4300/5700RPM 3700/5100RPM 3200/4400RPM 3400/4600RPM 3300/4000RPM
Rated current 27A/22A 33A/27A 38A/32A 46A/39A 53A/44A 63A/53A
Rated torque 2.1/1.6N.M 3.3/2.5N.M 4.6/3.9N.M 6.6/4.8N.M 7.0/5.2N.M 8.7/7.2N.M
No-load current 14A/15A 15A/16A 15A/16A 16A/17A 17A/18A 18A/19A
No-load speed 10000RPM 10000RPM 9000RPM 9000RPM 9000RPM 9000RPM
Efficiency 83% 83% 83% 83% 83% 83%
Reduction ratio

12.5:1

15.5:1

12.5:1

15.5:1

12.5:1

15.5:1

12.5:1

15.5:1

12.5:1

15.5:1

12.5:1

15.5:1

Recommended

total load

800Kg 900Kg 1000Kg 1200Kg 1400Kg 1600Kg
Application range can be used for electric tricycle, lorry mini electric truck
Other requirements Voltage48v,60v,72V can be used Medium speed, big torque, plains, hills, mountains can be used
