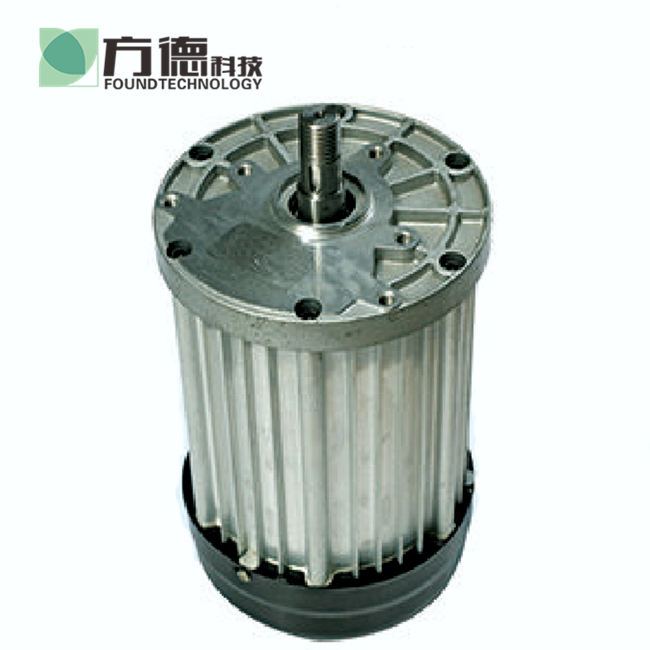

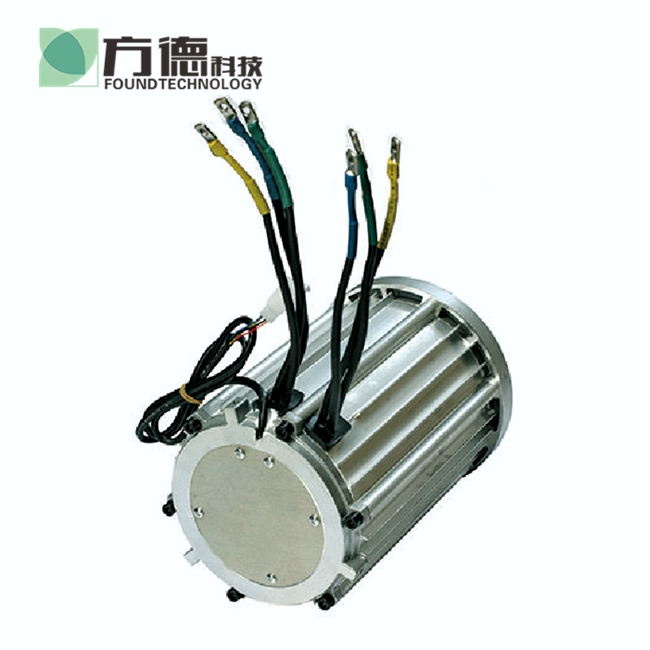

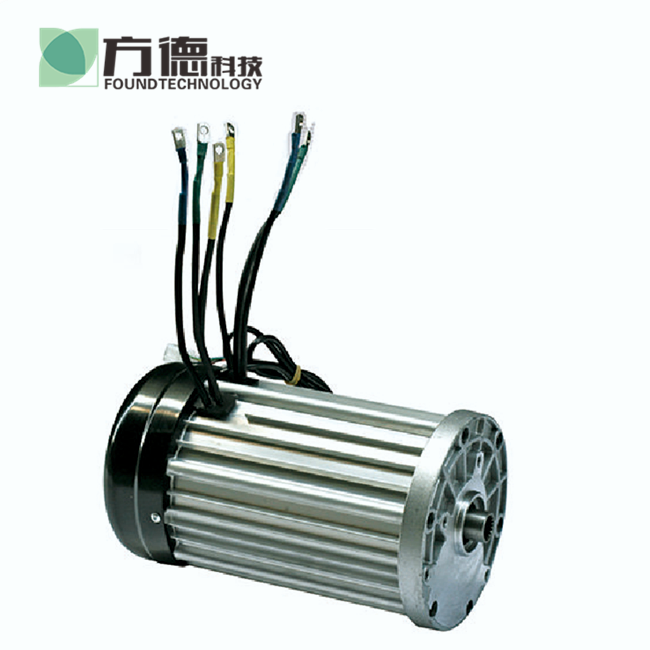

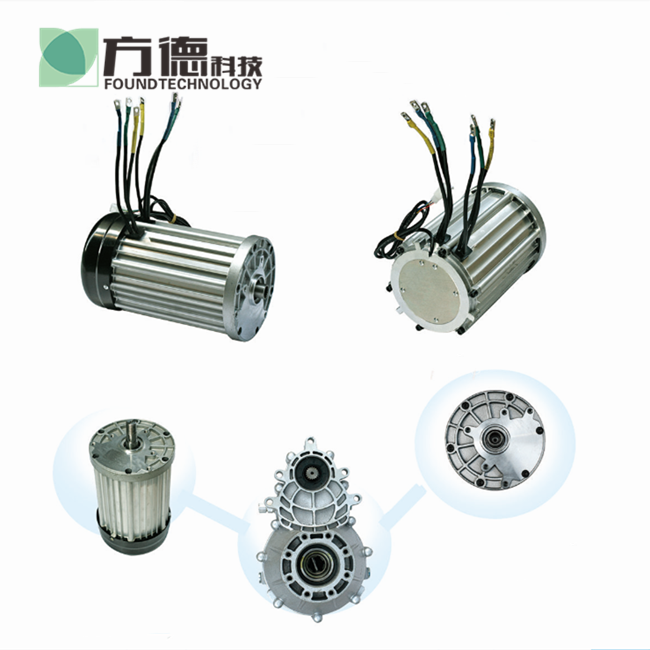

Switched Reluctance Motor

  • FM-SRM-02
  • FM-SRM-02
  • FM-SRM-02
  • FM-SRM-02
  • FM-SRM-02
  • FM-SRM-02
FM-SRM-02FM-SRM-02FM-SRM-02FM-SRM-02FM-SRM-02FM-SRM-02

FM-SRM-02

  • 48V/60V/72V
  • 1200W-3000W
  • Switched reluctance motor

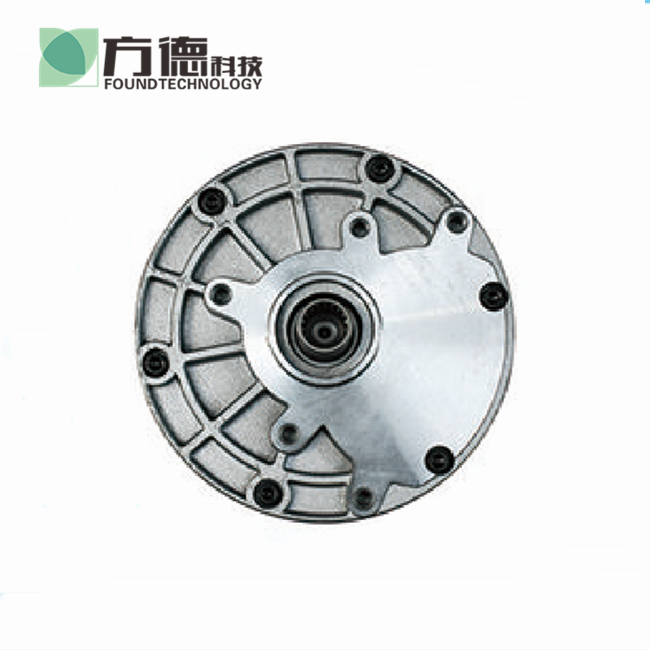

  • new 5 holes interface
  • Description: 48V/60V/72V 1200W-3000W DC switched reluctance motor SRD motor SRM
  • Inquiry


48V/60V/72V 1200W-3000W DC switched reluctance motor,new 5 holes interface.

The high-power DC switched reluctance differential motor and controller are manufactured with the world’s leading technology.Our products subvert the new generation of brushless non-magnetic steel motor driving system.

Parameters of dedicatedspecialswitched reluctance motor for passenger use

(1200W-3000W,match with TBK controller

Rated output power

1200W

1500W

1800W

2000W

2500W

3000W

Rated voltage

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

Rated speed

5600/7300RPM

5100/6900RPM

4100/5600RPM

3900/5100RPM

3700/4900RPM

3500/4600RPM

Rated current

27A/22A

33A/27A

38A/32A

46A/39A

53A/44A

63A/53A

Rated torque

2.0/1.6N.M

2.8/2.1N.M

4.2/3.0N.M

5.4/4.1N.M

6.5/4.9N.M

8.2/6.2N.M

No-load current

14A/15A

15A/16A

16A/17A

17A/18A

18A/19A

19A/20A

No-load speed

10000RPM

10000RPM

9500RPM

9500RPM

9500RPM

9500RPM

Efficiency

83%

83%

83%

83%

83%

83%

Reduction ratio

12.51

10.5:1

12.51

10.5:1

12.51

10.5:1

12.51

10.5:1

12.51

10.5:1

12.51

10.5:1

Recommended

total load

700Kg

800Kg

900Kg

1100Kg

1300Kg

1500Kg

Application range

can be used for electric tricyclesthree wheel rickshaw, mini electric four wheel vehicles,

Other requirements

Voltage48v,60v,72V can be used

Fast speed, big torque, plains, hills, mountains can be used

Parameters of dedicatedspecialswitched reluctance motor for cargo use

(1200W-3000W,match with TBK controller

Rated output power

1200W

1500W

1800W

2000W

2500W

3000W

Rated voltage

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

48V/60V/72V

Rated speed

5300/6900RPM

4300/5700RPM

3700/5100RPM

3200/4400RPM

3400/4600RPM

3300/4000RPM

Rated current

27A/22A

33A/27A

38A/32A

46A/39A

53A/44A

63A/53A

Rated torque

2.1/1.6N.M

3.3/2.5N.M

4.6/3.9N.M

6.6/4.8N.M

7.0/5.2N.M

8.7/7.2N.M

No-load current

14A/15A

15A/16A

15A/16A

16A/17A

17A/18A

18A/19A

No-load speed

10000RPM

10000RPM

9000RPM

9000RPM

9000RPM

9000RPM

Efficiency

83%

83%

83%

83%

83%

83%

Reduction ratio

12.51

15.5:1

12.51

15.5:1

12.51

15.5:1

12.51

15.5:1

12.51

15.5:1

12.51

15.5:1

Recommended

total load

800Kg

900Kg

1000Kg

1200Kg

1400Kg

1600Kg

Application range

can be used for electric tricycle, lorry mini electric truck

Other requirements

Voltage48v,60v,72V can be used

Medium speed, big torque, plains, hills, mountains can be used


The advantages of
switched reluctance differential motor are as follows:

1.Computer intelligent self-test ,third gear Promise speed ,small pulse ,low noise.

2.Empty speed ,small starting current ,heavy current is small,climbing current small torque,you can climb for a long time,do not             burn the motor,do not burn the controller.

3.Driving distance,reliable and durable,long life.

4.Brushless non-magnetic steel (not demagnetization),sliding no resistance ,the more the more power,the more powerful with               the more powerful,Low carbon environmental protection.

Specific performance in the following points:

1. Compared to brushless motor, vehicle speed increased by 20%.

2. Compared to brushless motor or AC motor,power saving 20-30%.

3. Compared to brushless motor, the controller life expectancy 90%.

4. Compared to brushless motor, the reliability is improved by 90%.
