Magnesium Alloy Motor

  • FM-03-002-14’’
  • FM-03-002-14’’
  • FM-03-002-14’’
  • FM-03-002-14’’
FM-03-002-14’’FM-03-002-14’’FM-03-002-14’’FM-03-002-14’’

FM-03-002-14’’

  • Magnesium Alloy Motor
  • brushless geared motor
  • Dc motor
  • Hub motor
  • Description: FM-03-002-14’’ Magnesium Alloy Motor dc brushless geared hub motor with waterproof cable for electric bicycle/E-bike
  • Inquiry

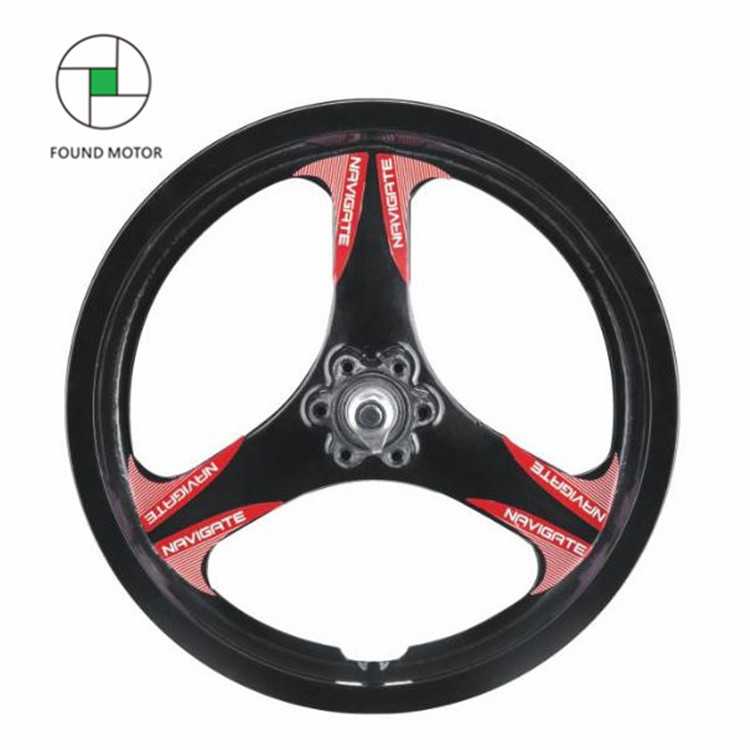

FM-03-002-14’’ Magnesium Alloy Motor dc brushless geared  hub motor with waterproof cable for electric bicycle/E-bike


Model

FM-03-002

Rated Voltage(V)

24/36/48

Rated power(W)

180-350

Wheel Size

14

Rated  Speed(km/h)

25-30

Rated Efficiency()

≥83

Reduction Ratio

1:4.4

Weight (Kg)

2.6

Open  Size(mm)

135

Drive and Freewheel

6-9s

Cable  Location

Shaft center right

Hall  Sensor

Optional

Integrate  Speed sensor

Optional

Surface

Shining/Black/Silver

Brake Type

V brake/Disc

Salt fog test(h)

24/96

Noise (db)

<55db

Waterproof Grade

IP54
