Down Tube Battery FM-HT

Model:

FM-HT

Weight:

Approx. 2.5kg

Cells:

18650

Discharge Current:

20A or customized

End Voltage:

19.2V/28V

Cycle life:

600cycles,capacity>60%

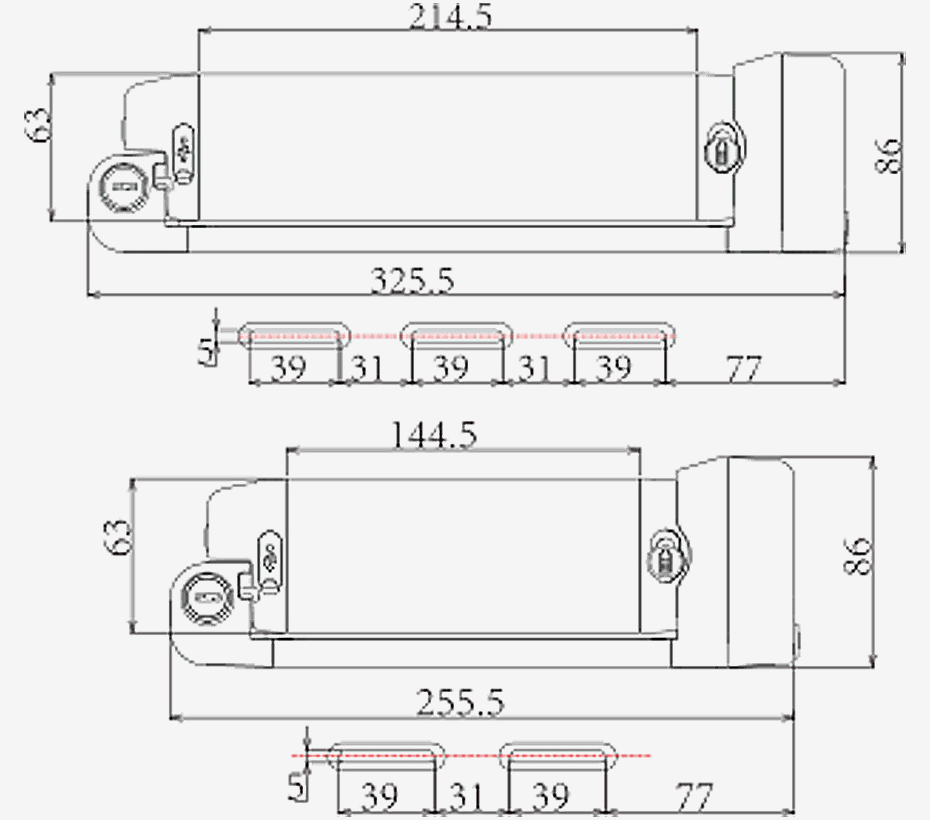

Dimension(L/W/H):

325.5/255.5*86*86mm

Max Cells

Configuration

Capacity

2.0Ah

2.5Ah

2.6Ah

2.9Ah

3.2Ah

3.5Ah

14

7S2P

24V4Ah

24V5Ah

24V5.2Ah

24V5.8Ah

24V6.4Ah

24V7Ah

21

7S3P

24V6Ah

24V7.5Ah

24V7.8Ah

24V8.7Ah

24V9.6Ah

24V10.5Ah

10S2P

36V4Ah

36V5Ah

36V5.2Ah

36V5.8Ah

36V6.4Ah

36V7Ah
