Lithium Battery

  • Inner battery FM-NY1
  • Inner battery FM-NY1
  • Inner battery FM-NY1
  • Inner battery FM-NY1
  • Inner battery FM-NY1
  • Inner battery FM-NY1
  • Inner battery FM-NY1
Inner battery FM-NY1Inner battery FM-NY1Inner battery FM-NY1Inner battery FM-NY1Inner battery FM-NY1Inner battery FM-NY1Inner battery FM-NY1

Inner battery FM-NY1

  • lithium battery
  • lion battery
  • electric bike battery
  • electric bicycle battery
  • Description: electric bicycle battery electric bike battery electric bicycle parts electric bike accessories Lithium lion Battery Inner battery FM-NY1
  • Inquiry


Specifications

Model:

FM-NY1

Weight:

Approx. 3.5kg

Cells:

18650

Discharge Current:

20A or customized

End Voltage:

28V/36.4V

Cycle life:

600cycles,capacity>60%

Dimension(L/W/H):

453*163*60mm

Battery Configuration

Max Cells

Configuration

Capacity

2.0Ah

2.5Ah

2.6Ah

2.9Ah

3.2Ah

3.5Ah

52

10S5P

36V10Ah

36V12.5Ah

36V13Ah

36V14.5Ah

36V16Ah

36V17.5Ah

13S4P

48V8Ah

48V10Ah

48V10Ah

48V11.6Ah

48V12.8Ah

48V14Ah

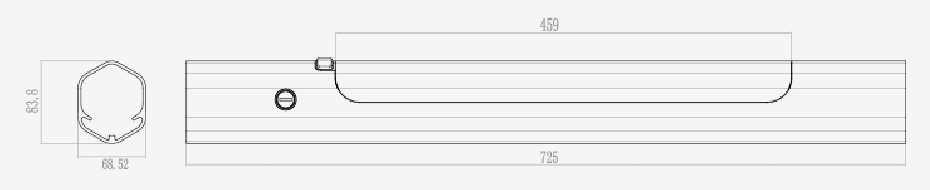

Technical Drawing
