Lithium Battery

  • Rear Rack Battery FM-HV
  • Rear Rack Battery FM-HV
  • Rear Rack Battery FM-HV
  • Rear Rack Battery FM-HV
  • Rear Rack Battery FM-HV
Rear Rack Battery FM-HVRear Rack Battery FM-HVRear Rack Battery FM-HVRear Rack Battery FM-HVRear Rack Battery FM-HV

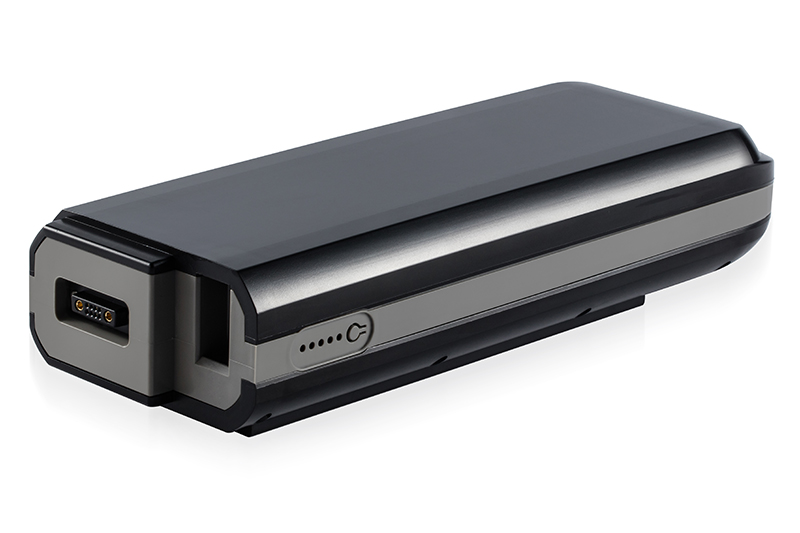

Rear Rack Battery FM-HV

  • lithium battery
  • lion battery
  • electric bike battery
  • electric bike battery
  • Description: electric bicycle battery electric bike battery electric bicycle parts electric bike accessories Lithium lion Battery Rear Rack Battery FM-HV
  • Inquiry

Specifications

Model:

FM-HV

Weight:

Approx. 4kg

Cells:

18650

Discharge Current:

20A or customized

End Voltage:

28V/36.4V

Cycle life:

600cycles,capacity>60%

Dimension(L/W/H):

452*126*75mm

Battery Configuration

Max Cells

Configuration

Capacity

2.0Ah

2.5Ah

2.6Ah

2.9Ah

3.2Ah

3.5Ah

60

10S6P

36V12Ah

36V15Ah

36V15.6Ah

36V17.4Ah

36V19.2Ah

36V21Ah

13S4P

48V8Ah

48V10Ah

48V10.4Ah

48V11.6Ah

48V12.8Ah

48V14Ah

Technical Drawing
