  • Description: FM-04-008-20''-26'' dc brushless geared spoke motor for electric snowmobile/snowbike/fat bike
  • Inquiry

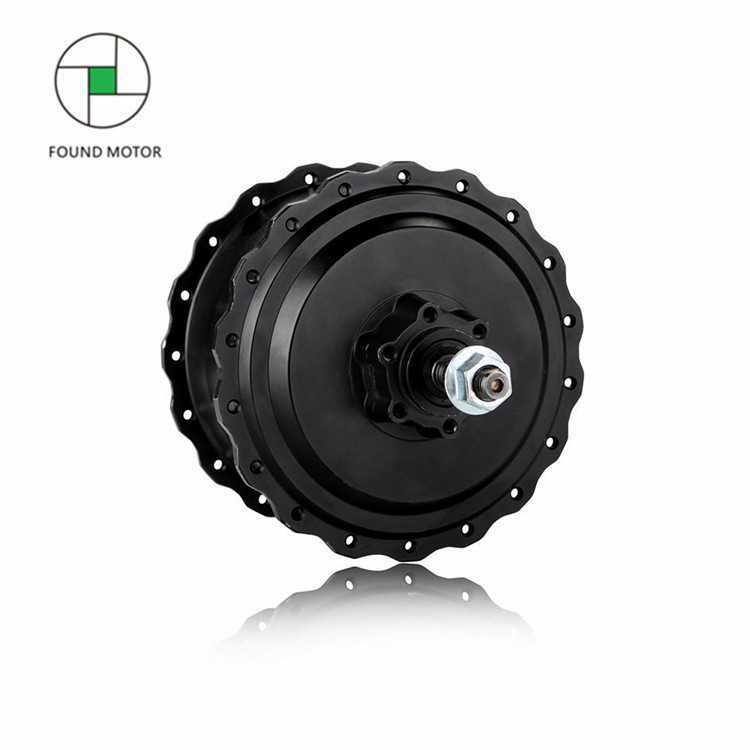

FM-04-008-20''-26''  dc brushless geared spoke motor for electric snowmobile/snowbike/fat bike


Model

FM-04-008

Rated Voltage(V)

24/36/48

Rated power(W)

350-750

Wheel Size

20-28”

Rated  Speed(km/h)

25

Rated Efficiency()

≥84

Reduction Ratio

1:5

Weight (Kg)

4.3

Open  Size(mm)

170/180/190

Drive and Freewheel

6-9s

Cable  Location

Shaft center right

Hall  Sensor

Optional

Integrate  Speed sensor

Optional

Surface

Shining /Black /Silver

Brake Type

Disc

Salt fog test(h)

24/96

Noise (db)

<55db

Waterproof Grade

IP54
