Customized Motor
FM-04-002-154- 14’’-22’’
- Dc motor
- Brushless geared motor
- Electric Agricultural Machinery
- Electric Agricultural Robots

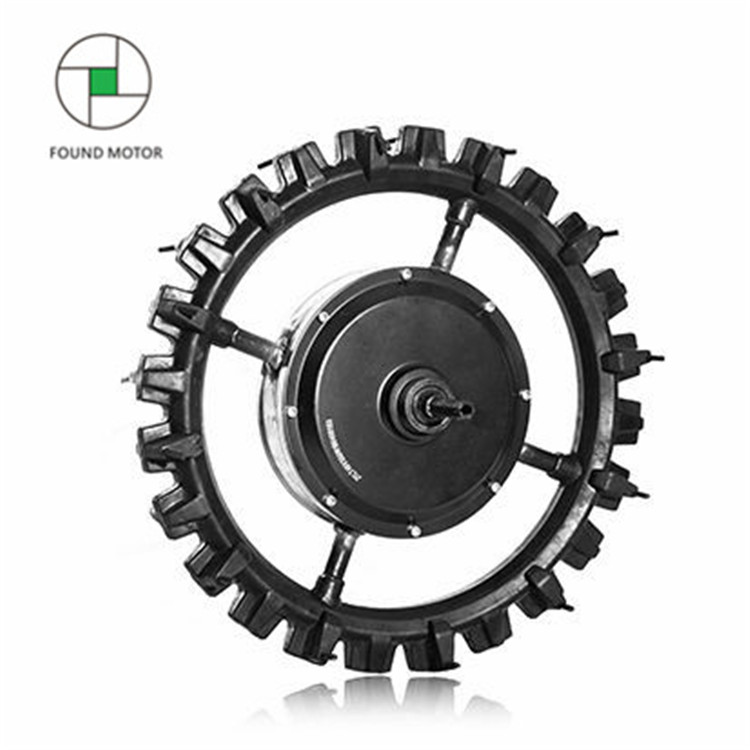

- Description: FM-04-002-154-14’’-22’’ dc brushless geared hub motor for electric Agricultural Machinery/Agricultural Vehicles/Agricultural Robots
FM-04-002-154-14’’-22’’ dc brushless geared hub motor for electric Agricultural Machinery/Agricultural Vehicles/Agricultural Robots
|
Model |
FM-04-002-154-14”-22” |
|
Rated Voltage(V) |
36/48 |
|
Rated power(W) |
250-800 |
|
Wheel Size |
14”-22” |
|
Rated Speed(km/h) |
25-28 |
|
Rated Efficiency(％) |
≥85 |
|
Reduction Ratio |
/ |
|
Weight (Kg) |
4.3 |
|
Open Size(mm) |
120 |
|
Drive and Freewheel |
1s |
|
Cable Location |
Shaft center left/right |
|
Hall Sensor |
Optional |
|
Integrate Speed sensor |
Optional |
|
Surface |
Silver painted |
|
Brake Type |
Expansile brake/Drum |
|
Salt fog test(h) |
24/96 |
|
Noise (db) |
<60db |
|
Waterproof Grade |
IP54 |
