Electric Bike Conversion Kit

  • FMK-02A
  • FMK-02A
  • FMK-02A
  • FMK-02A
  • FMK-02A
  • FMK-02A
  • FMK-02A
  • FMK-02A
FMK-02AFMK-02AFMK-02AFMK-02AFMK-02AFMK-02AFMK-02AFMK-02A

FMK-02A

  • FOUND MOTOR
  • Eectric bike conversion kit
  • Rear drive motor
  • 26'' 36V 250W brushless geared motor
  • Description: FMK-02A 36V 250W Rear drive 6-9S speed motor kit with throttle with battery indicate and lock for electric bike electric bicycle convesion kit and electric bike kit
  • Inquiry

FMK-02A 36V 250W Rear drive 6-9S speed motor kit with throttle with battery indicate and lock for electric bike

NO
Product name
Product Code
Specifications
1
Motor
FM-01-01-92H
1.26"36V 250W BLDC Geared rear drive spoke motor
2.Dropout - 135mm(open size),6-9 speed
3.Waterproof cable with connector 200mm
  extension cable with normal connnector 500mm
4.Disk brake cover left,motor cable right
5.Color:black/silver
6.Customized LOGO available
2
Controller
CZFD002S
1.DC 36V, Sinewave controller.
2.Current-limiting 13A.
3.Normal connector:Motor,power,throttle with battery indicate and lock,brake lever,switch,front light,PAS.
3
Throttle
XH02
1.Full twist throttle with battery indicate and lock
2.Full twist throttle,half twist throttle,thumb throttle with battery indicate optional
3.Different kinds grips optional
4.Cable length 1.5m,normal connector
4

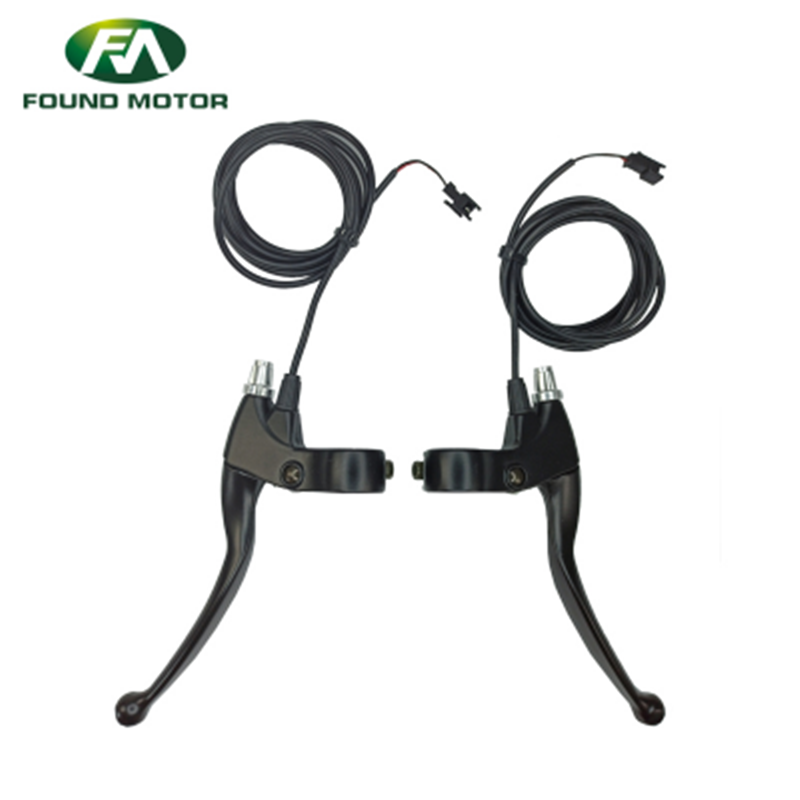

Brake lever
19S07
1.Brake lever with normal connector
2.Cable length 1.5m
3.Brake levers optional
5
Switch
DK21
1.Light/horn switch with normal connector
2.Cable length 1.5m
3.Switches optional
6
Front light
XHL-01
1.Front light and horn with normal connector
2.Cable length 1.5m
3.Lights optional
7

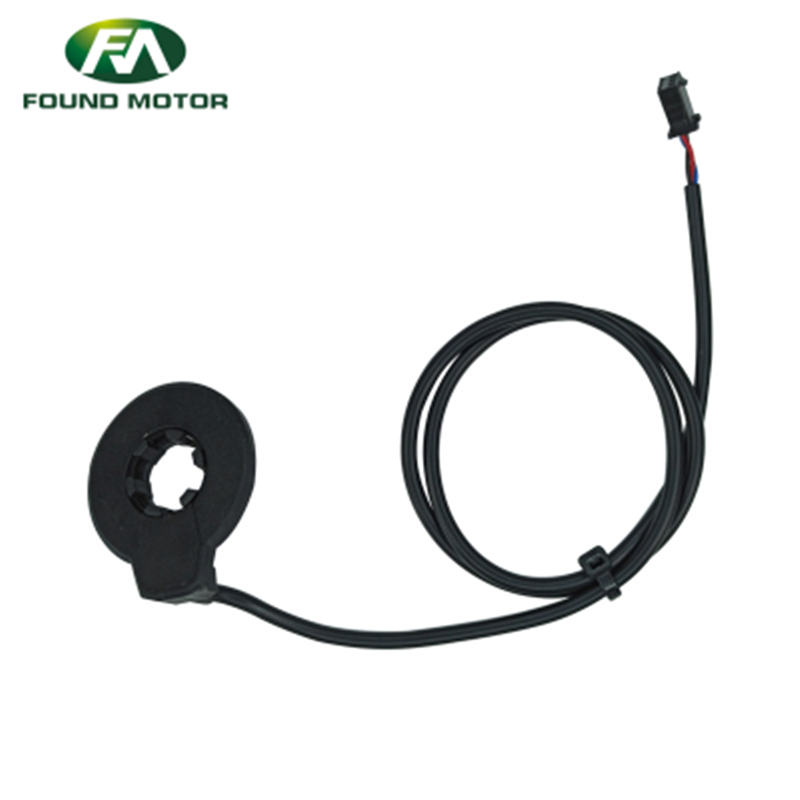

PAS
SW002
1.Double sensors,6 magnets, Left side
2.Cable length 60cm,normal connector
3.PAS SW001,SW002,SW003 optional
