Electric Bike Conversion Kit

FMK-01D

FOUND MOTOR
Eectric bike conversion kit
Rear drive 6-11s speed cassette motor kit with rim
26'' 36V 250W brushless geared motor
Description: FMK-01D 36V 250W Rear drive 6-11 speed cassette motor kit with AK47 LCD display and rim for electric bike electric bicycle convesion kit and electric bike kit
Inquiry

FMK-01D 36V 250W Rear drive 6-11 speed cassette motor kit with AK47 LCD display and rim for electric bike

NO	Product name	Product Code	Specifications
NO	Product name	Product Code	Specifications

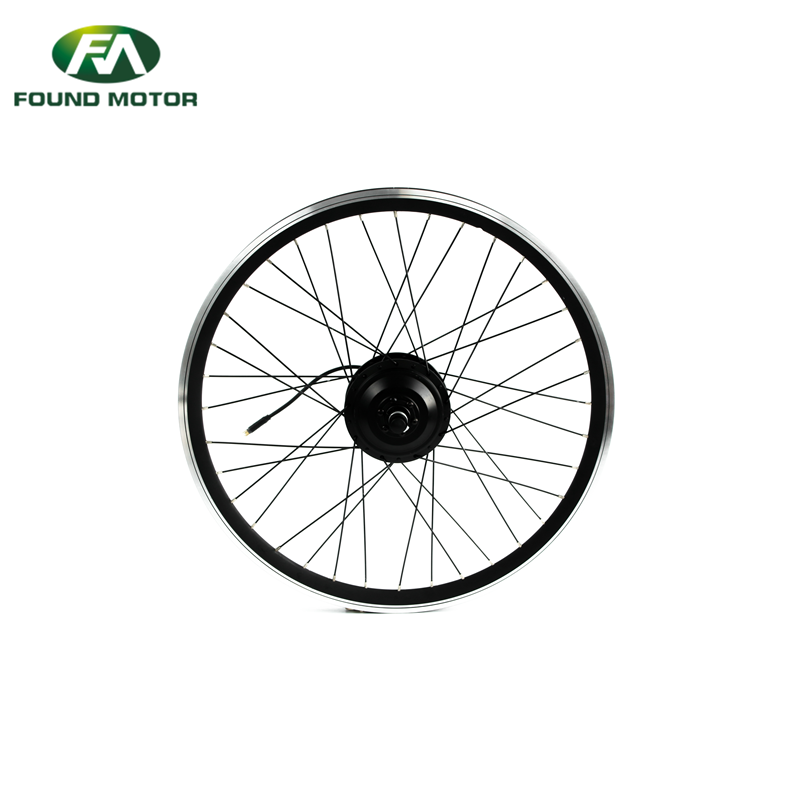

1	Motor	FM-01-01-92HC	1.26"36V 250W BLDC Geared rear drive spoke motor 2.Dropout - 140mm(open size),6-11 speed cassette motor 3.Waterproof cable with connector 200mm extension cable with normal connnector 500mm 4.Disk brake cover left,motor cable right 5.Color:black/silver 6.Customized LOGO available 7.26*1.75/1.95 double layers rim with spokes. 8.Standard carton and foams.
2	Controller	CZFD001S	1.DC 36V, Sinewave controller. 2.Current-limiting 15A. 3.Normal connector:Motor,power,throttle,brakelever, LCD display,8S auto cruise,switch,front light,PAS.
3	LCD diaplay	AK-47	1. LCD display with normal connector. 2.Cable length 1.5m 3.Battery indicate,speed,5 level PAS,walk speed 6kmh,ODO/TRIP,etc. 4.SW02 protocol. 5.LCD displays optional
4	Throttle	DS1511/054	1.Full twist throttle with normal connector 2.Cable length 1.5m 3.Full twist throttle,half twist throttle,thumb throttle optional 4.Different kinds grips optional
5	Brake lever	19S07	1.Brake lever with normal connector 2.Cable length 1.5m 3.Brake levers optional
6	Switch	DK21	1.Light/horn switch with normal connector 2.Cable length 1.5m 3.Switches optional
7	Front light	XHL-01	1.Front light and horn with normal connector 2.Cable length 1.5m 3.Lights optional
8	PAS	SW002	1.Double sensors,6 magnets, Left side 2.Cable length 60cm,normal connector 3.PAS SW001,SW002,SW003 optional
