Electric Bike Conversion Kit

20'' 48V 350W BLDC Geared Hub Motor Electric Bike Conversion Kit with Optional Brake Lever

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-500W
  • Description: 20'' 48V 350W BLDC Geared Hub Motor Electric Bike Conversion Kit with Optional Brake Lever
  • Inquiry

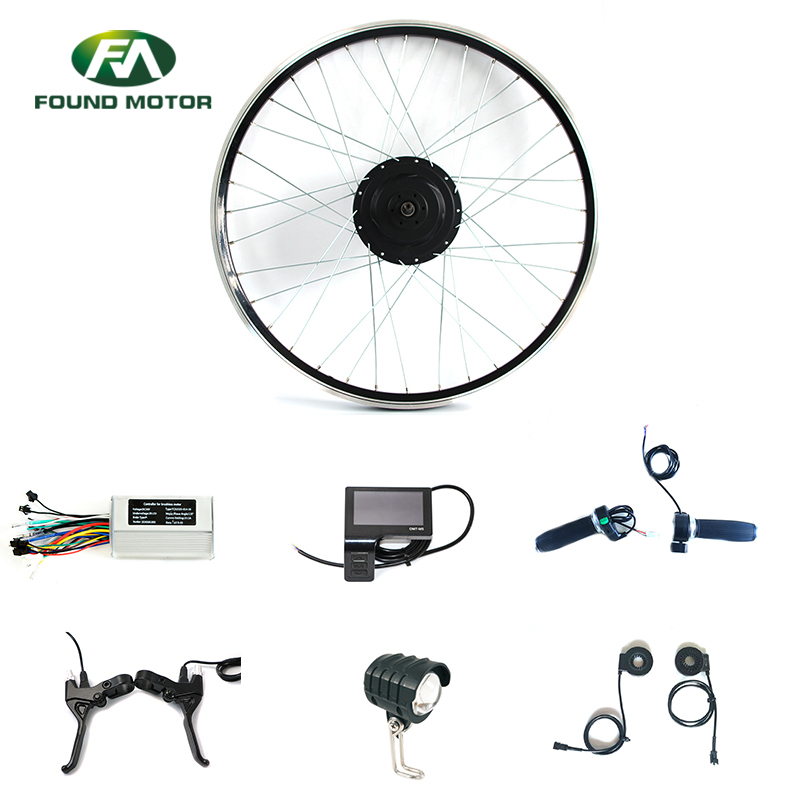

20'' 48V 350W BLDC Geared Hub Motor Electric Bike Conversion Kit with Optional Brake Lever


Motor specifications


Front drive motor

1.Wheel size:20''

2.Voltage:48V

3.Watt:350W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

7.Disk motor cover , left side.

8.Color:black,silver optional.


Rear drive motor

1.Wheel size:20''

2.Voltage:48V

3.Watt:350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

8.Disk motor cover , left side.

9.Color:black,silver optional.





Controller specifications


1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

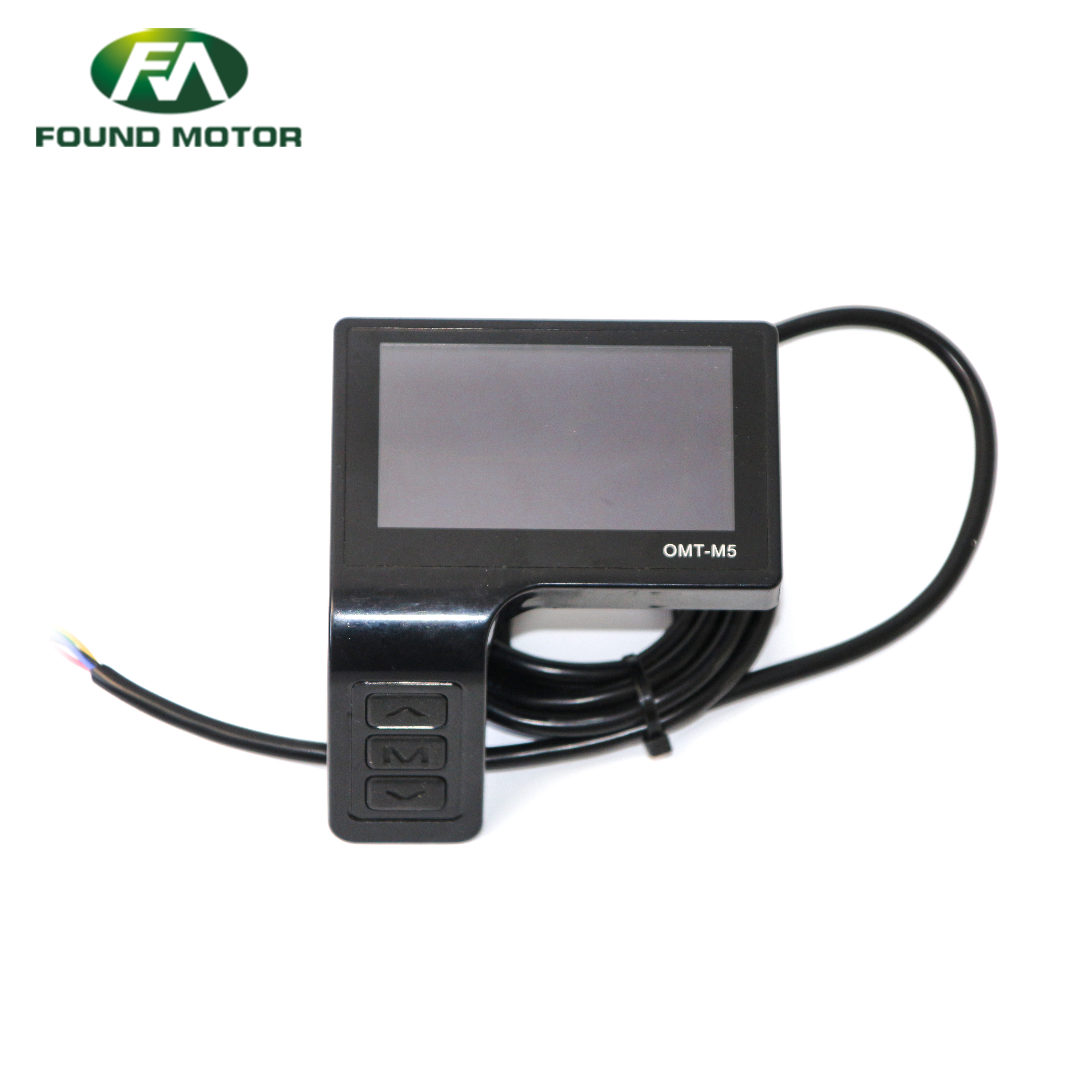

Display specifications


1.Model:M5

2.LCD/LED display with normal connector

3.LCD/LED display optional

4.Cable length: 1000mm







Throttle specifications


1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm






Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications


1.Model:D-022
2.Approvals: GB17761
3.Size: L: 54mm W: 58mm H: 103mm
4.Lumen: 130lm-150lm
5.Waterproof: IP54
6.Materials: ABS
7.Wiring: 3 cores
8.Power: Working Voltage: 48V
9.Output Current: 40mA-60mA






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
