Spoke Motor

  • FM-02-008 -92P
  • FM-02-008 -92P
  • FM-02-008 -92P
  • FM-02-008 -92P
  • FM-02-008 -92P
  • FM-02-008 -92P
FM-02-008 -92PFM-02-008 -92PFM-02-008 -92PFM-02-008 -92PFM-02-008 -92PFM-02-008 -92P

FM-02-008 -92P

  • spoke motor
  • brushless motor
  • brushless geared motor
  • electric bicycle motor
  • Description: FM-02-008 -92P spoke brushless geared electric bicycle motor
  • Inquiry

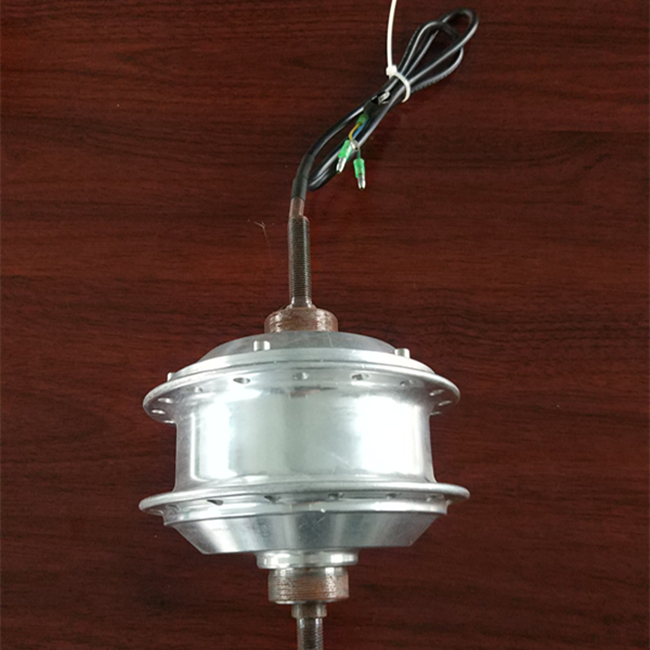

FM-02-008 -92P  spoke brushless geared electric bicycle motor


Model

FM-02-008

Rated Voltage(V)

24/36/48

Rated power(W)

180-350

Wheel Size

16”-700C

Rated  Speed(km/h)

25

Rated Efficiency(%)

83

Reduction Ratio

1:4.5

Weight (Kg)

3

Open  Size(mm)

140

Drive and Freewheel

1s

Cable  Location

Shaft center right

Hall  Sensor

Optional

Integrate  Speed sensor

Optional

Surface

Shining/Black/Silver

Brake Type

V brake/Disc

Salt fog test(h)

24/96

Noise (db)

<55db

Waterproof Grade

IP54
