Integrated wheel motor

  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
  • FM-01-013-92-16’’
FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’FM-01-013-92-16’’

FM-01-013-92-16’’

  • brushless geared motor
  • hub motor
  • electric motor
  • electric bicycle

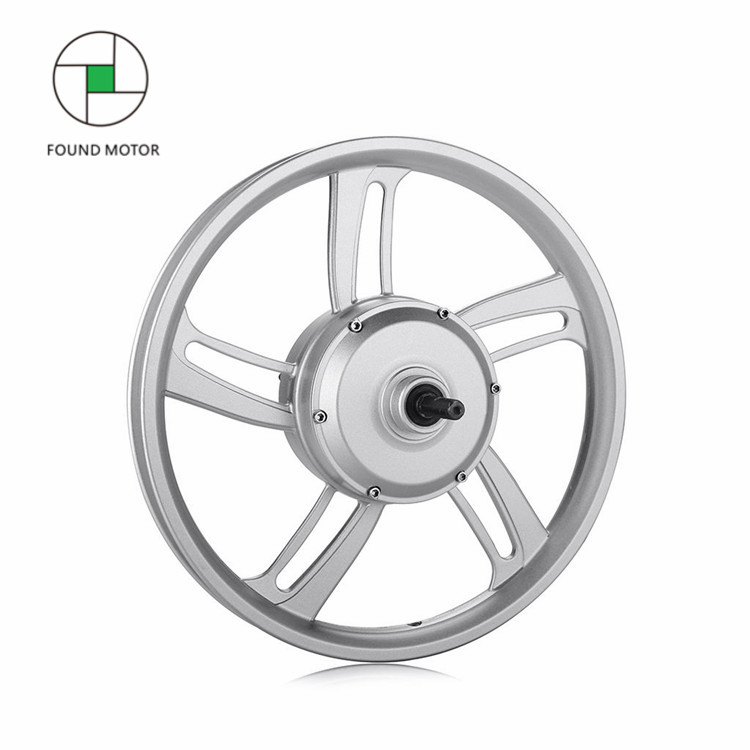

  • Description: FM-01-013-92 16’’ brushless geared hub electric motor for electric bicycle/E-bike
  • Inquiry


FM-01-013-92 16’’ brushless geared hub electric motor for electric bicycle/E-bike


Model

FM-01-013

Rated Voltage(V)

24/36/48

Rated power(W)

180-500

Wheel Size

16”

Rated  Speed(km/h)

25

Rated Efficiency()

≥82

Reduction Ratio

1:4.5

Weight (Kg)

3.5

Open  Size(mm)

120/135

Drive and Freewheel

1s

Cable  Location

Shaft center left/right

Hall  Sensor

Optional

Integrate  Speed sensor

Optional

Surface

Silver painted

Brake Type

Expansile brake/Disc

Salt fog test(h)

24/96

Noise (db)

<60db

Waterproof Grade

IP54
