FMK-13A

  • FOUND MOTOR
  • Eectric bike conversion kit
  • Rear drive motor
  • 26'' 48V 500W brushless geared motor
  • Description: FMK-13A Magnesium Alloy Motor FAT BIKE MOTOR KIT 26 inch 48V 500W Rear drive 6-9S speed motor kit with SW900 LCD display for electric bike electric bicycle convesion kit and electric bike kit
  • Inquiry
NO
Product name
Product Code
Specifications
1
Motor
FM-03-26''-10
1.26"36V/48V 500W BLDC Geared rear drive Magnesium Alloy Motor and front wheel
2.Dropout:170-190mm(open size),6-9 speed
3.Waterproof cable with connector 200mm
extension cable with normal connnector 500mm
4.Disk brake cover left,motor cable right
5.Color:black/silver
6.Customized LOGO available
7.26*4.0 RIM
8.Standard carton and foams
2
Controller
YCSV103-001-48
1.DC 36V/48V, FOC controller.
2.Current-limiting 22A.
3.Normal connector:Motor,power,throttle,brakelever,
LCD display,switch,front light,PAS.Auto cruise
3

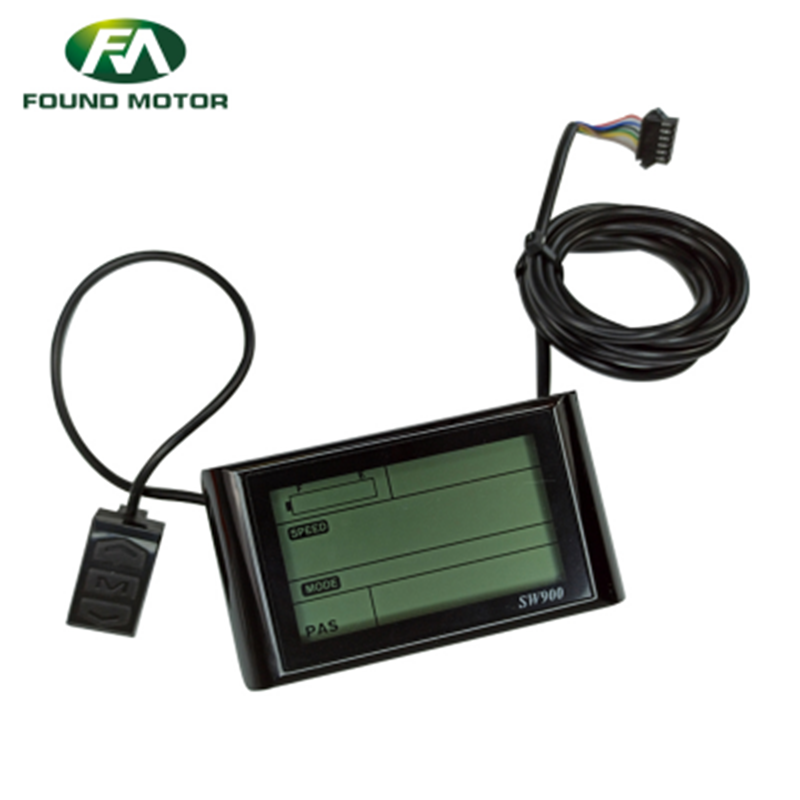

LCD diaplay
SW900
1. SW900 LCD display with normal connector.
2.Cable length 1.5m
3.Speed,5 level PAS,walk speed 6kmh,trip,etc.
4.SW02 protocol.
5.LCD displays optional
4
Throttle
DS1511/054
1.Full twist throttle with normal connector
2.Cable length 1.5m
3.Full twist throttle,half twist throttle,thumb throttle optional
4.Different kinds grips optional
5
Brake lever
19S17
1.Brake lever with normal connector
2.Cable length 1.5m
3.Brake levers optional
6
Switch
DK21S
1.Light/horn switch with normal connector
2.Cable length 1.5m
3.Switches optional
7
Front light
XHL-01
1.Front light and horn with normal connector
2.Cable length 1.5m
3.Lights optional
8
PAS
SW003
1.Double sensors,12 magnets, Left side
2.Cable length 60cmnormal connector
3.PAS SW001,SW002,SW003 optional
