FMK-12C

  • FOUND MOTOR
  • Eectric bike conversion kit
  • Rear drive motor with waterproof
  • 26'' 36V 500W brushless geared motor

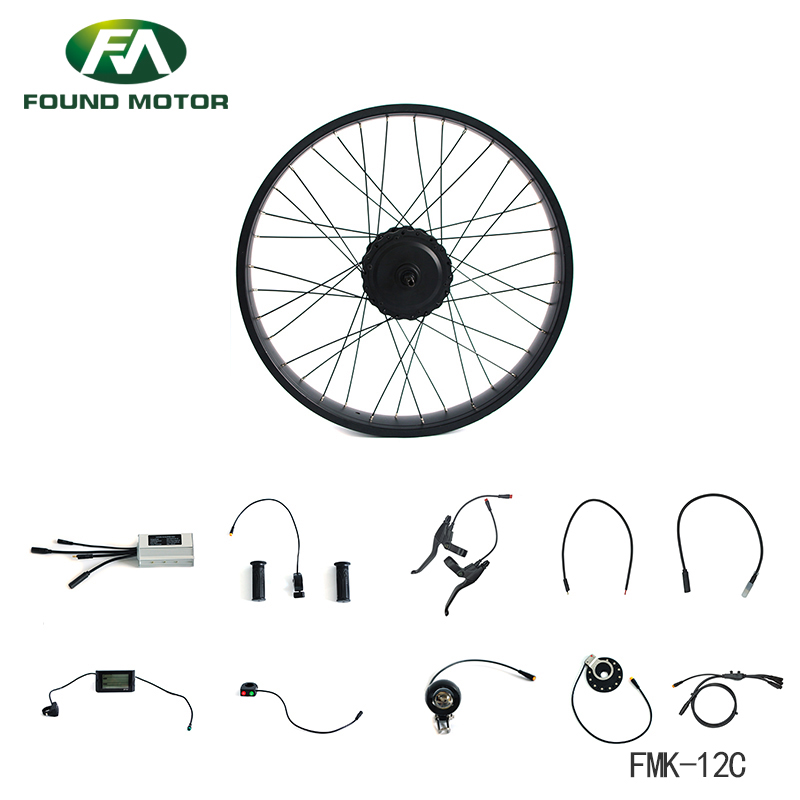

  • Description: FMK-12C FAT BIKE MOTOR KIT WITH WATERPROOF 48V 500W Rear drive 6-9S speed motor kit with SW900 LCD display 26 inch and rim for electric bike electric bicycle convesion kit and electric bike kit
  • Inquiry

FMK-12C FAT BIKE MOTOR KIT WITH WATERPROOF 48V 500W Rear drive 6-9S speed motor kit with SW900 LCD display 26 inch and rim for electric bike

NO
Product name
Product Code
Specifications
1
Motor
FM-01-01-BSBR
1.26"36V/48V 500W BLDC Geared rear drive spoke motor
2.Dropout:170-190mm(open size),6-9 speed
3.Waterproof cable with connector 200mm
  extension cable with waterproof connnector 500mm
4.Disk brake cover left,motor cable right
5.Color:black/silver
6.Customized LOGO available
7.26*4.0 double layers rim with spokes

8.Standard carton and foams
2
Controller
YCSV103-021-48
1.DC 36V/48V, FOC controller.
2.Current-limiting 22A.
3.Waterproof connector:Motor,power,throttle,brakelever,
LCD display,switch,front light,PAS.Auto cruise
3
LCD diaplay
SW900
1. SW900 LCD display with waterproof connector.
2.Cable length 1.5m
3.Speed,5 level PAS,walk speed 6kmh,trip,etc.
4.SW02 protocol.
5.LCD displays optional
4
Throttle
T001+054Grip
1.Full twist throttle with waterproof  connector
2.Full twist throttle,half twist throttle,thumb throttle optional
3.Different kinds grips optional
5
Brake lever
19S17
1.Brake lever with waterproof connector
2.Brake levers optional
6
Switch
DK21
1.Light/horn switch with waterproof  connector
2.Switches optional
7
Front light
SD001
1.Front light and horn with waterproof connector
2.Lights optional
8
PAS
SW001
1.Double sensors,12 magnets, Right side,waterproof connector
2.PAS SW001,SW002,SW003 optional
9
Waterproof cables
JL 2T5
1.Assembly Cable with waterproof connectors
2.Battery cable  with waterproof connectors
3.All the other waterproof cables for motor,controller,display,throttle,brake lever,switch,PAS,etc
