FMK-01A

  • FOUND MOTOR
  • Eectric bike conversion kit
  • Front drive motor kit with rim
  • 26'' 36V 250W brushless geared motor
  • Description: FMK-01A 36V 250W Front drive motor kit with AK47 LCD display 26inch and rim for electric bike electric bicycle convesion kit and electric bike kit
  • Inquiry

FMK-01A 36V 250W Front drive motor kit with  AK47 LCD display 26inch and rim for electric bike

NO
Product name
Product Code
Specifications
1
Motor
FM-01-01-92F
1.26"36V 250W BLDC Geared front drive spoke motor
2.Dropout - 100mm(open size)
3.Waterproof cable with connector 200mm
extension cable with normal connnector 900-1000mm
4.Disk brake cover left,motor cable right
5.Color:black/silver
6.Customized LOGO available
7.26*1.75/1.95 double layers rim with spokes.
8.Standard carton and foams.
2
Controller
CZFD001S
1.DC 36V, Sinewave controller.
2.Current-limiting 15A.
3.Normal connector:Motor,power,throttle,brakelever,
LCD display,8S auto cruise,switch,front light,PAS.
3
LCD diaplay
AK-47
1. LCD display with normal connector.
2.Cable length 1.5m
3.Battery indicate,speed,5 level PAS,walk speed 6kmh,ODO/TRIP,etc.
4.SW02 protocol.
5.LCD displays optional
4
Throttle
DS1511/054
1.Full twist throttle with normal connector
2.Cable length 1.5m
3.Full twist throttle,half twist throttle,thumb throttle optional
4.Different kinds grips optional
5
Brake lever
19S07
1.Brake lever with normal connector
2.Cable length 1.5m
3.Brake levers optional
6
Switch
DK21
1.Light/horn switch with normal connector
2.Cable length 1.5m
3.Switches optional
7
Front light
XHL-01
1.Front light and horn with normal connector
2.Cable length 1.5m
3.Lights optional
8

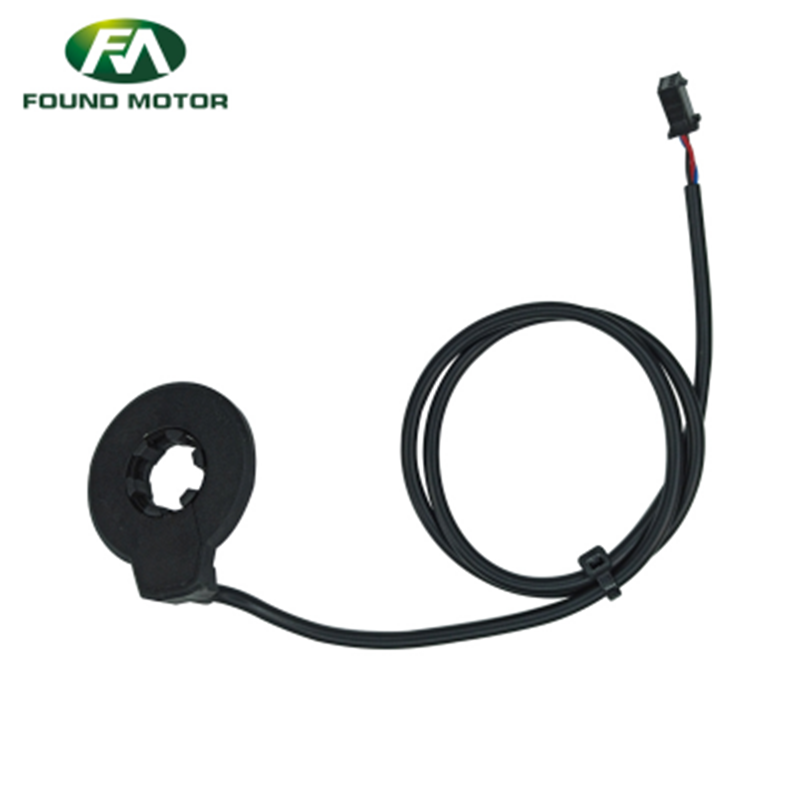

PAS
SW002
1.Double sensors,6 magnets, Left side
2.Cable length 60cm,normal connector
3.PAS SW001,SW002,SW003 optional
